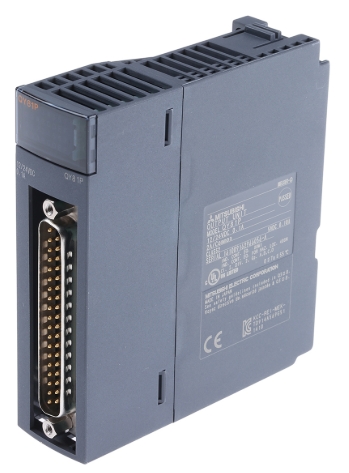

In the realm of industrial automation, Mitsubishi Electric has long been synonymous with technological innovation and product reliability. Among its Q-series PLC (Programmable Logic Controller) modules, the QY81P 1W4316 stands out as a core component across diverse industrial scenarios, thanks to its precise control performance and versatile applications.

Parameters & Data: Quantifying High Performance

• Model & Series: The QY81P 1W4316 is an output module in Mitsubishi Electric's Q-series PLC lineup, designed for high-precision control requirements.
• I/O Points: Supports 32 digital inputs with a voltage range of 12/24VDC, accommodating various industrial signal environments.
• Physical Attributes: Compact module dimensions (specific size depends on installation method), housed in a white casing, and compatible with standard DIN rail mounting.
• System Compatibility: Seamlessly integrates with the MELSEC Q-series PLC system, working cohesively with base units, expansion units, and other functional modules.
• Program Capacity: Equipped with 400KB of built-in program memory, supporting up to 60K steps of program capacity to meet complex control logic demands.
• Output Frequency: 50/60Hz adaptive, compliant with global power frequency standards.
• Short-Circuit Protection: Integrated short-circuit protection enhances system stability and safety.

Technical Features: Dual Assurance of Precision and Stability

High-Precision Control Capability

The QY81P 1W4316 module achieves microsecond-level response speeds through optimized circuit design and signal processing algorithms, making it ideal for high-speed, high-precision control scenarios such as automated production lines and robotic collaboration.

Wide Voltage Adaptability & Anti-Interference Design

Supporting dual-voltage inputs of 12/24VDC, it caters to diverse industrial power supply needs. Its electromagnetic compatibility (EMC) design ensures robust resistance to industrial electromagnetic interference, guaranteeing stable signal transmission.

Modular Expandability & Flexibility

As part of the Q-series modules, the QY81P 1W4316 allows flexible I/O point configurations through combinations with expansion units and modules. It supports diverse control needs—including analog signals, positioning, and network communication—while reducing system upgrade costs.

Energy Efficiency & Environmental Compliance

Aligned with the EU RoHS environmental standards, the module adopts low-power design principles. Combined with Mitsubishi Electric's "Green Manufacturing" philosophy, it aids enterprises in achieving carbon neutrality goals.

Applications: From Production Lines to Smart Factories

• Automated Production Line Control

In automotive manufacturing, electronics assembly, and similar settings, the QY81P 1W4316 precisely controls the start/stop operations and speeds of robotic arms, conveyor belts, and other equipment, enhancing production efficiency and product quality.

• Energy Management & Smart Grids

Integrated into distributed energy systems (e.g., photovoltaic and energy storage devices), it enables real-time energy monitoring and optimized dispatching, reducing corporate energy consumption costs.

• Building Automation & Smart Security

In intelligent buildings, the module controls subsystems such as lighting, HVAC, and access control. When paired with Mitsubishi Electric's Building Energy Management System (BEMS), it creates energy-efficient and comfortable office environments.

• Environmental Monitoring & Process Control

Applied in water treatment, chemical engineering, and other contexts, it ensures production safety through closed-loop control of temperature, pressure, flow rates, and other parameters via high-precision sensor data acquisition.

Product website:

https://www.3splc.com/-QY81P-1W4316_c0_ss

The MITSUBISHI QY81P 1W4316 module has become a cornerstone of industrial automation, offering exceptional performance parameters, innovative technical design, and cross-industry solutions. Whether facilitating the intelligent upgrade of traditional manufacturing or exploring emerging fields like renewable energy and smart cities, this module demonstrates remarkable adaptability and practical value. For enterprises pursuing efficient, stable, and green production, the QY81P 1W4316 is undeniably an ideal choice for embracing the Industrial 4.0 era.
