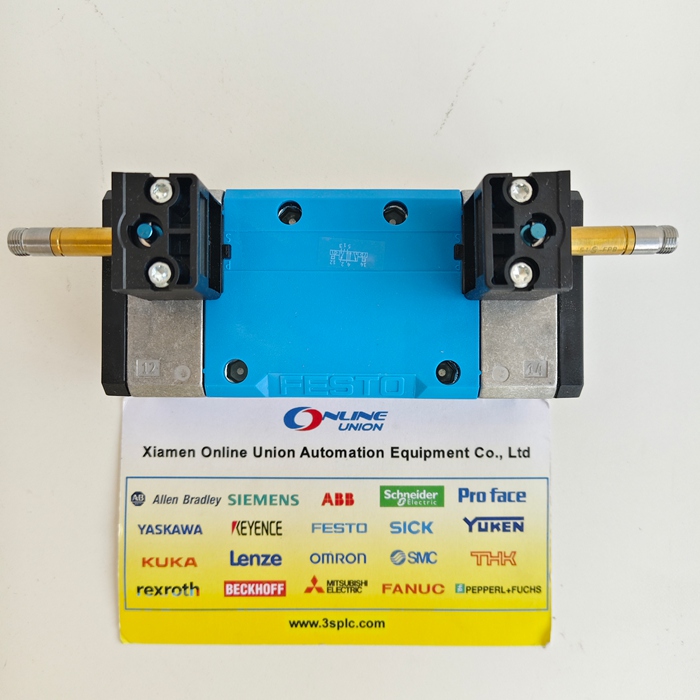

In the high-stakes arena of industrial automation, where milliseconds dictate efficiency and reliability is non-negotiable, the FESTO JMFH-5/2-D-3-C (Part No. 151871) stands as a paragon of engineering excellence. A cornerstone of the legendary Tiger Classic series, this 5/2-way double solenoid valve is not merely a component; it is the decisive command center for your pneumatic systems, engineered to deliver uncompromising performance in the most demanding environments.

Core Architecture: Unrivaled Robustness

This valve is built for the long haul. Housed in a rugged, die-cast aluminum enclosure that strikes the perfect balance between lightweight agility and structural integrity, the JMFH-5/2-D-3-C is rated IP65, rendering it impervious to dust and water jets—a critical feature for harsh industrial settings. Its soft-sealing technology ensures a hermetic shut-off, while the piston spool valve design guarantees smooth, friction-resistant actuation even after millions of cycles.

Compliant with ISO 5599-1 and mounted on a standard Size 3 sub-base, it integrates seamlessly into existing manifolds, reducing installation complexity and footprint. With a compact width of just 65mm, it saves valuable real estate in control cabinets without sacrificing power.

Performance Metrics: Power Meets Precision

What sets this valve apart is its sheer pneumatic throughput. Rated for a massive 4,500 L/min (LPM) flow rate at standard operating pressures, it unleashes the full potential of your compressed air supply, ensuring rapid cylinder actuation and minimized cycle times.

• Operating Pressure: 2 to 10 bar (29 to 145 psi).
• Switching Speed: Lightning-fast response times with a reverse switching time of merely 18ms.
• Bistable Logic: As a double solenoid valve, it features a "memory" function. Once energized, it maintains its position without continuous power, slashing energy consumption and heat generation. It only requires a pulse to switch states, making it ideal for safety-critical applications where position retention is mandatory during power outages.

Intelligent Control & User Interface

The JMFH-5/2-D-3-C bridges the gap between automation and human intervention. It features a non-detenting manual override (push-button), allowing operators to manually actuate the valve for setup, maintenance, or emergency troubleshooting without disrupting the electrical system.

• Pilot Operation: It utilizes internal pilot air, simplifying piping and reducing external hose clutter.
• Electrical Flexibility: Designed for Festo’s MSF coil system, it accepts a wide range of voltages (12V/24V DC, 24V/42V/110V/230V AC). Note: The coil and connector plug must be ordered separately to match specific voltage requirements.
• Exhaust Control: Features throttled exhaust ports (M5), allowing for precise speed control of pneumatic actuators to prevent end-of-stroke shock.

Technical Specifications at a Glance

Application Domains

The versatility of the JMFH-5/2-D-3-C makes it the "Swiss Army Knife" of direction control valves. It is the actuator of choice for:

1. High-Speed Packaging: Rapid fill-and-seal operations requiring precise timing.
2. Automotive Assembly: Heavy-duty clamping and welding fixtures.
3. Material Handling: Conveyor sorting and pneumatic gripping.
4. Process Automation: Chemical dosing and fluid control where leak-tight integrity is paramount.

Conclusion

The FESTO JMFH-5/2-D-3-C is more than a valve; it is an investment in system uptime and operational efficiency. By combining the high-flow capacity of a power valve with the precise logic control of a standard solenoid, it eliminates the need for complex external piping or oversized components. For engineers demanding a "fit-and-forget" solution that adheres to global standards while delivering aggressive performance, this valve is the definitive answer.
